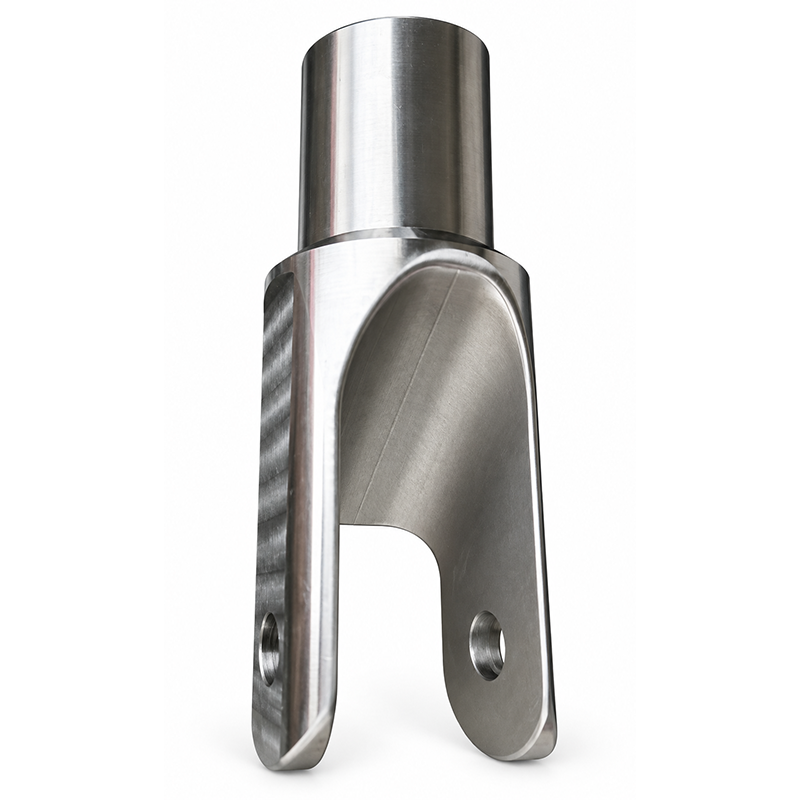

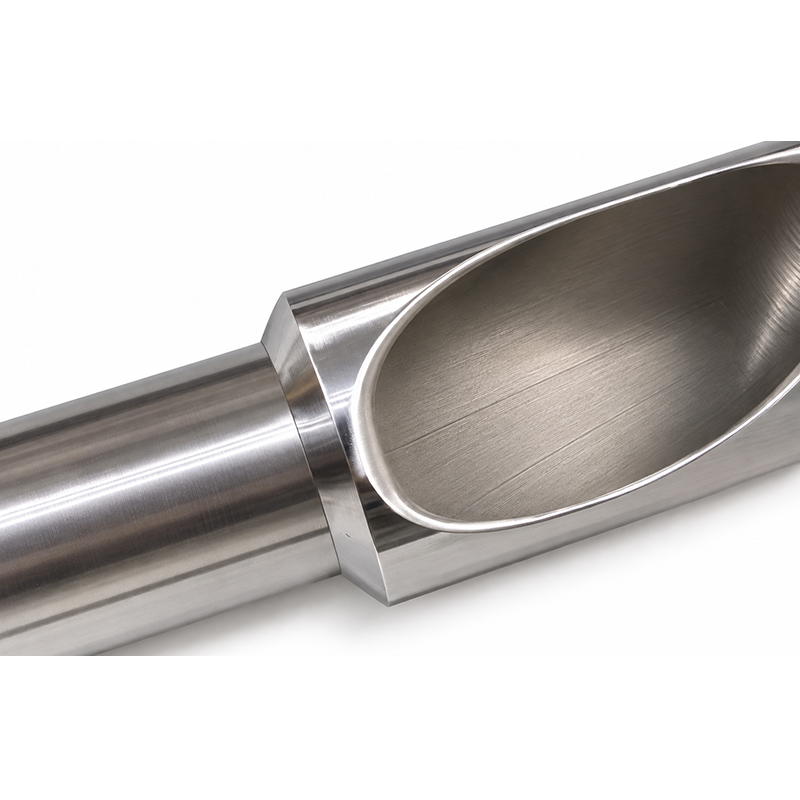

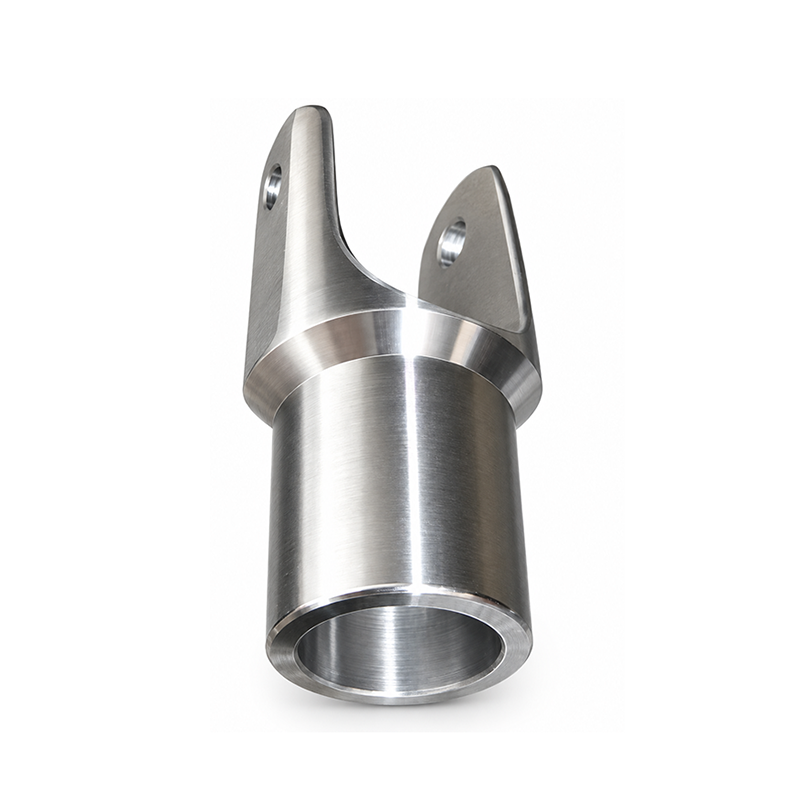

4130 Alloy Steel Shock Mount Clevis

Precision CNC-machined shock mount clevis for off-road and performance suspension systems. Machined from 4130 alloy steel with controlled mounting-hole alignment, clevis geometry and critical locating features for reliable suspension assembly.

Material	AISI4130
Process	CNC Lathe+4 axis CNC Milling
Surface Finish	Ra3.2
Tolerance	+/-0.05
Application	Off-road Industry

Tight Tolerance

Up to ±0.02 mm machining accuracy

High Quality

Strict quality control hroughout production.

On-time Delivery

Efficient production planning and reliable delivery.
