Case Studies

This project involved the manufacture of a long-format precision aluminum mounting base for solar photovoltaic production and related automation equipment.

CNC-machined 42CrMo precision locating sleeve with a Ø32 mm internal bore, knurled gripping section and integrated threaded locking features. Heat treated to HRC 35–40 and nickel plated for strength, wear resistance and corrosion protection, it is suitable for precision fixture, inspection, alignment and clamping applications.

A CNC-machined precision threaded adapter featuring a Ø34 mm flanged head, Ø32 mm threaded body, Ø14.10 mm controlled center bore and stepped locating geometry. The part is designed for accurate mechanical connection and positioning. Based on its geometry, it is suitable for inspection fixtures, gauges, alignment tools and other precision mechanical assemblies; the customer's drawing does not identify the exact final application.

Manufacture of AAT-003, a 140 mm long precision threaded shaft from 42CrMo alloy steel. The component combines a Ø30.90 mm head, a slender shaft, a long M14×1.5-6g external thread and an axial through-bore. After machining, the part is heat treated to HRC 35-40 and finished with nickel plating.

CNC machining of a compact Al6061 wheel hub for a Yard.bot robotic lawn-care gearbox / wheel-drive assembly.

Precision 42CrMo Bearing Support Component for Robotic Outdoor Equipment

The project involved manufacturing a two-piece precision assembly consisting of a 6061 aluminum actuation sleeve and a heat-treated 17-4PH flexible collet.

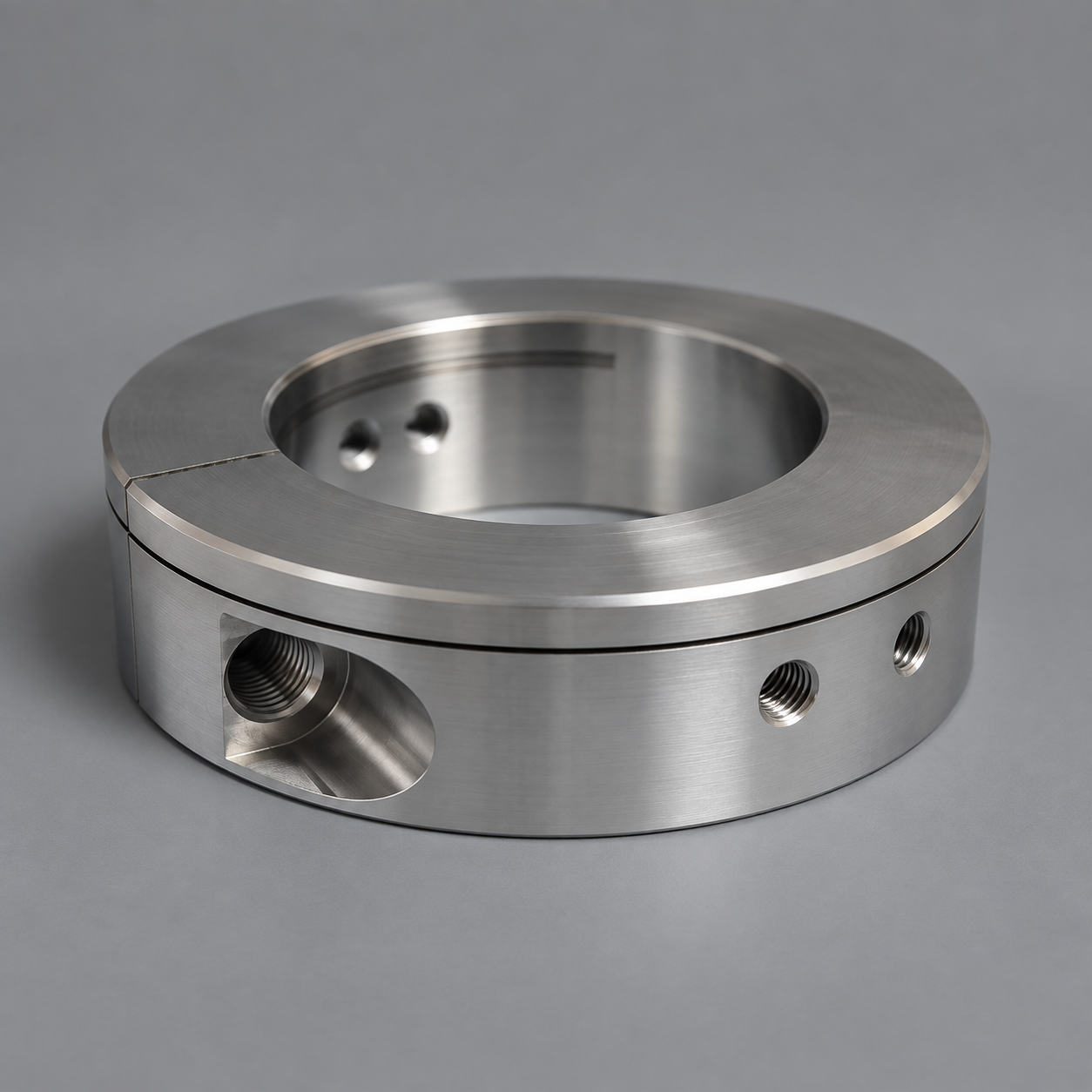

A customer required a precision bearing clamp manufactured from 42CrMo alloy steel for a mechanical bearing retention and clamping application.

A large-format precision aluminum base plate was manufactured for industrial equipment used in the solar manufacturing sector.

A custom 304 stainless steel fabricated assembly was manufactured for installation within industrial equipment.

This project involved manufacturing a 42CrMo rock grate assembly for a heavy-duty material-handling application. The assembly consists of a machined base plate, six long grate fingers and two transverse support components. The finished assembly weighs approximately 3.15 kg and incorporates defined installation geometry and angular relationships.

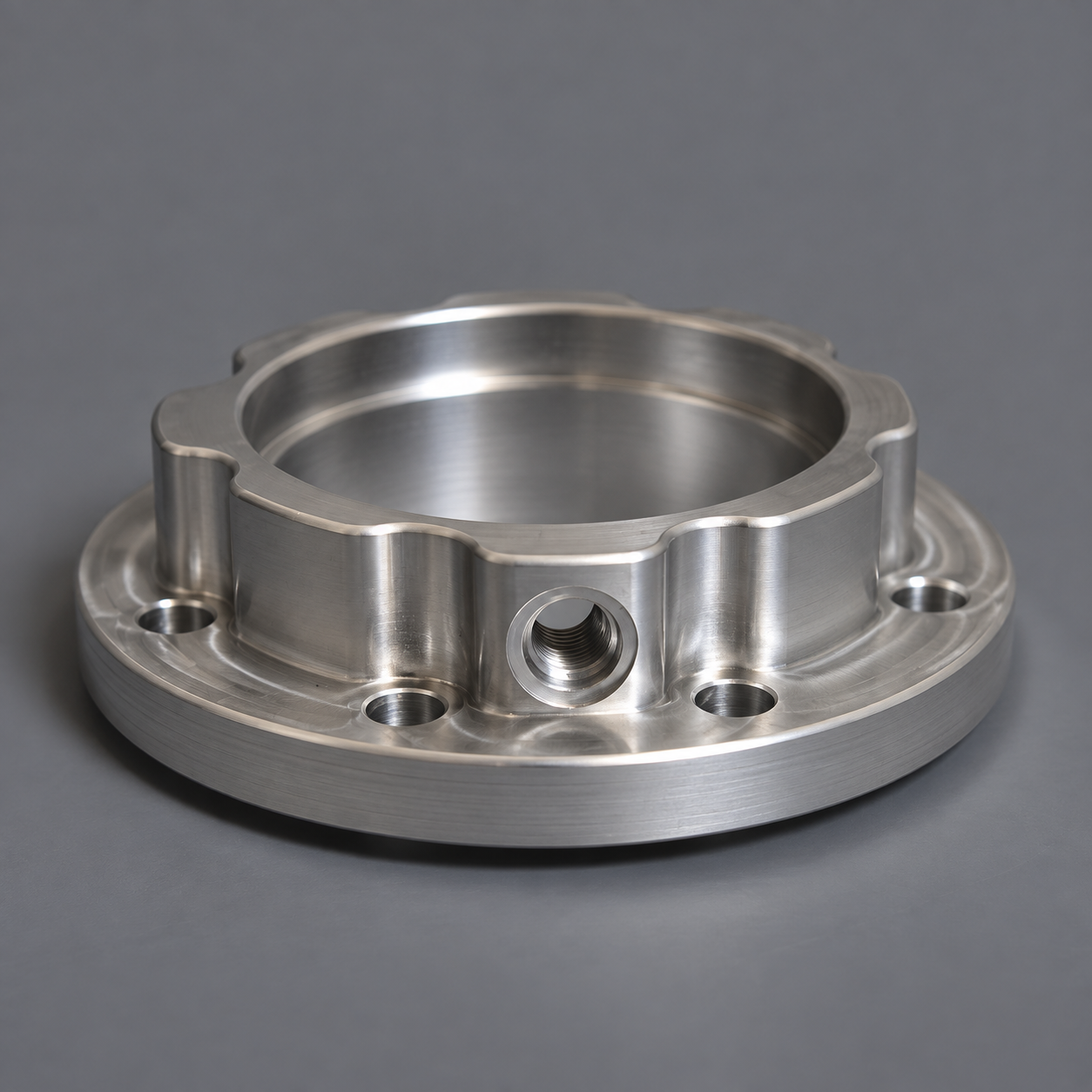

The project involved manufacturing a precision aluminum end-cap component from 6061-T6 seamless tube for an industrial mechanical/fluid-control assembly. The part combines turned concentric features with milled mounting geometry and two -3 ORB sealing ports.
